LOOK Pedal Keo Blade Power Single Black Wattmåler

Every watt counts, both in the transfer from the shoes to the pedals and on your bike computer. With the single-sided power meter integrated into the current KéO Blade Carbon generation, you can increase your pedalling efficiency and obtain extremely accurate performance data to optimize your training. As well as being easy to set up, the KéO Blade Power pedals also impress with their low weight of just 261 grams for the pedal pair.
The 4th generation of the KéO Blade platform has become even more comfortable, more aerodynamic and easier to adjust. The proven click mechanism with carbon leaf spring has remained unchanged. This enables a more defined exit from the pedal as well as a significantly faster release of the foot at the end of the exit compared to conventional clipless pedals. To meet the requirements of all riders, the carbon blades are available with 3 different release strengths from 12 Nm to 20 Nm release strength. The 12 Nm version will suit most riders, while the 16 Nm and 20 Nm versions are suitable for powerful riders and sprinters looking for an extra firm hold on the pedal.
The perfect integration of the carbon leaf spring makes the Blade the most aerodynamic pedal on the market. 2 channels on the sides additionally support the optimum air flow. The double seals and extensive material tests on the axles, which far exceed the applicable standards, guarantee a long service life.

Extremely high accuracy
Thanks to the latest generation of electronic sensors and algorithms, the maximum measurement deviation is 1 %. To ensure that the data is consistent at all times, the power meters automatically calibrate themselves to fluctuations in temperature and air pressure.

Long battery life
Despite the small dimensions of the power meter, the integrated lithium-polymer battery has a runtime of 60 hours. The battery is charged using the USB-C cable with magnetic contact included in the scope of delivery. Thanks to a low capacity loss of only 20 % after 300 charging cycles, you will still be able to enjoy your Look Powermeter pedals even after many years.

Robust mechanical and electronic construction
The power meter, which is optimally protected in the pedal axle, has excellent resistance to weather influences and extreme loads when riding. Look offers a guarantee of up to 3 years on its product.

Easier entry
An optimized weight balance makes the click-in movement 60 % easier compared to the previous version. This gives you more confidence to hit the pedal in hectic situations.

More robust and durable
With a new axle design, revised seals and a new, more durable water-repellent bearing grease, the KéO Blade pedals have become significantly more robust. A new, reinforced pedal body design also provides 200 % more robustness and greater resistance in the event of accidental contact with the pedals and in the event of a fall.

Increased comfort
The revised platform with 705 mm² contact surface reduces the risk of pressure peaks on the foot, regardless of the stiffness of the shoes. The support surface, which has now been extended to 3 stainless steel plates, also ensures greater stability and reduces unwanted movements and lateral tilting when pedaling.

Simple blade change
Thanks to the new design, the blade spring can be replaced within 30 seconds without special tools to change the release hardness.

Updated aero profile
The new design not only looks fast, it also saves another 2 % air resistance compared to the previous design.


Technical data:

Area of application: road bike/triathlon/time trial
Pedal axle material: Chromoly+ steel
Pedal body material: Carbon
Contact surface material: stainless steel
Battery: integrated rechargeable lithium-polymer battery (140 mAh)
Running time: approx. 60 hours (sleep mode 6 months)
Transmission: ANT+ / Bluetooth
Bike computer compatibility: all common ANT+ and Bluetooth compatible bike computers (e.g. Garmin Edge)
Measurement accuracy: +/-1 %
Water resistance: IPX7
Contact surface size: 705 mm²
Bearing: 1x ball bearing, 1x needle bearing
Freedom of movement: depending on cleats 0°, 4.5° (included) or 9°
Release force: 16 Nm
Release angle: n.a.
Q-factor: 53 mm
Compatibility: Look/SPD-SL sole standard
Weight limit: 100 kg
Colors: black

Weight according to manufacturer: 130g (left Powermeter pedal), 330g (1x pair of pedals including cleats)
Weight self-weighed: 261 (1x pair of pedals), 325g (1x pair of pedals including cleats)


Scope of delivery:

1x pair of LOOK KéO Blade Single pedals with integrated power meter sensor (left pedal)
1x pair of pedal plates + screws

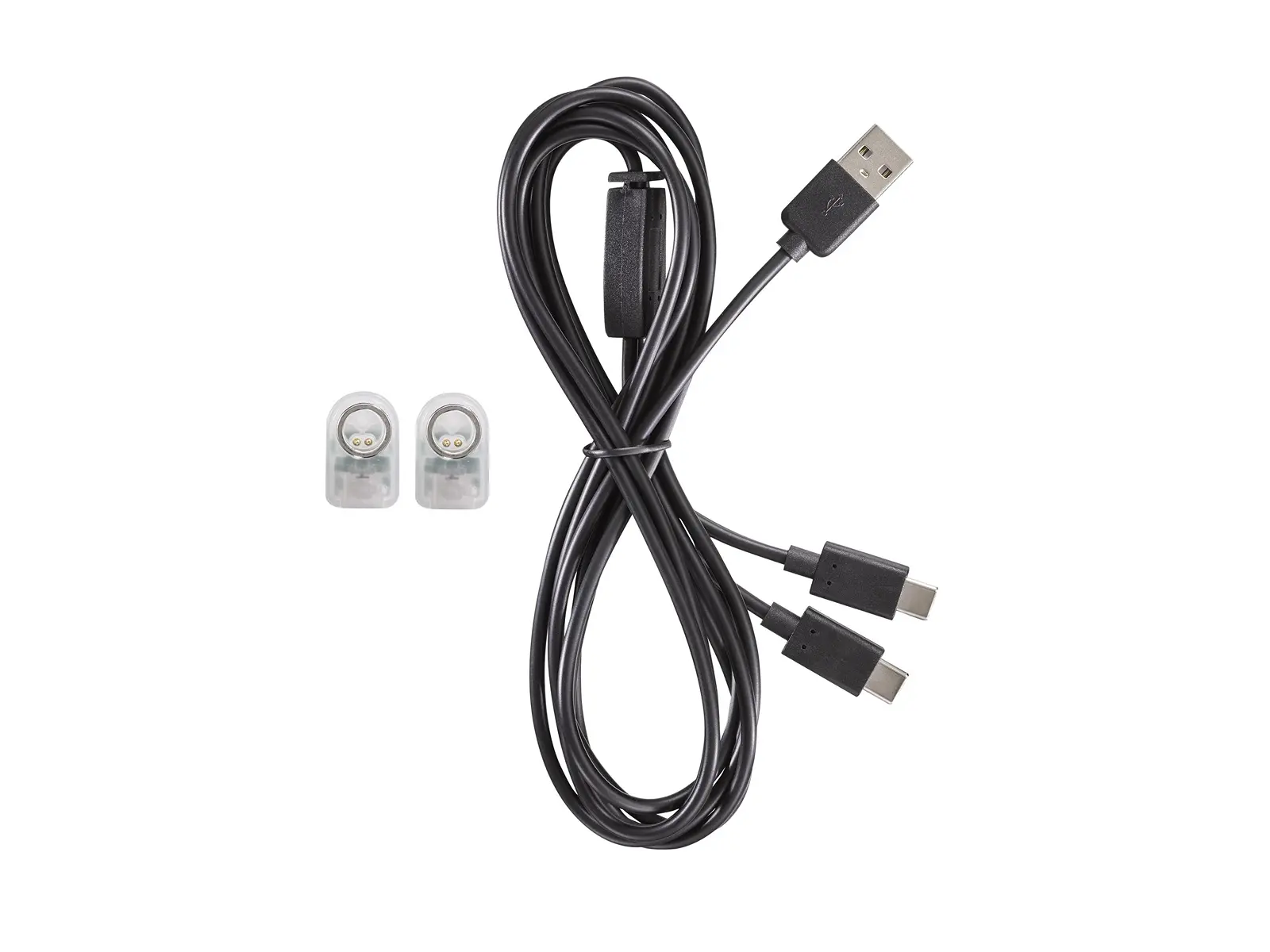

1x magnetic USB charging adapter
1x USB charging cable 1.5m
